5.5.6. Vehicle information display warnings and indicators

The displayed images may differ depending on the model.

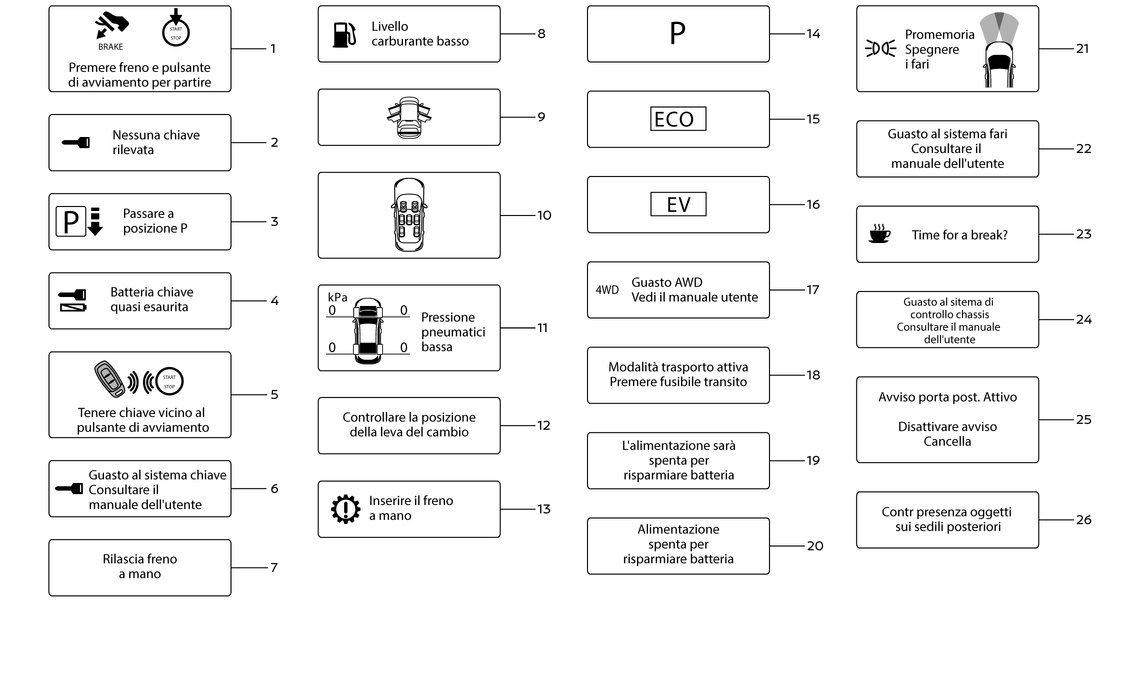

1. Indicatore di avviamento sistema e-POWER
2. Avviso [Nessuna chiave rilevata]
3. Shift to Park warning
4. Avviso [Batteria chiave quasi esaurita]
5. Indicatore di avviamento motore per sistema Intelligent Key
6. Avviso [Guasto al sistema chiave Consultare il manuale dell'utente]
7. Avviso [Rilascia freno a mano]
8. Avviso [Livello carburante basso]
9. Door/back door open warning
10. Seat belt warning
11. Avvertimento [Pressione pneumatici bassa]
12. Avviso [Controllare la posizione della leva del cambio]
13. Avviso [Inserire il freno a mano]
14. Indicatore posizione di marcia
15. Indicatore selettore modalità di guida
16. Indicatore della modalità EV
17. Avviso [Guasto 4WD Vedi il manuale utente] (se in dotazione)
18. Avviso [Modalità trasporto attiva Premere fusibile transito] (se in dotazione)
19. Avviso [L'alimentazione sarà spenta per risparmiare batteria]
20. [Power turned off to save the battery] warning
21. [Reminder Turn OFF Headlights] warning
22. Avviso [Guasto al sistema fari Consultare il manuale dell'utente]
23. Indicatore [Ora di fare una pausa?]
24. Avviso [Guasto al sistema di controllo chassis Consultare il manuale dell'utente]
25. Indicatore [Avviso porta post. Attivo] (se in dotazione)
26. Indicatore [Contr presenza oggetti sui sedili posteriori] (se in dotazione)

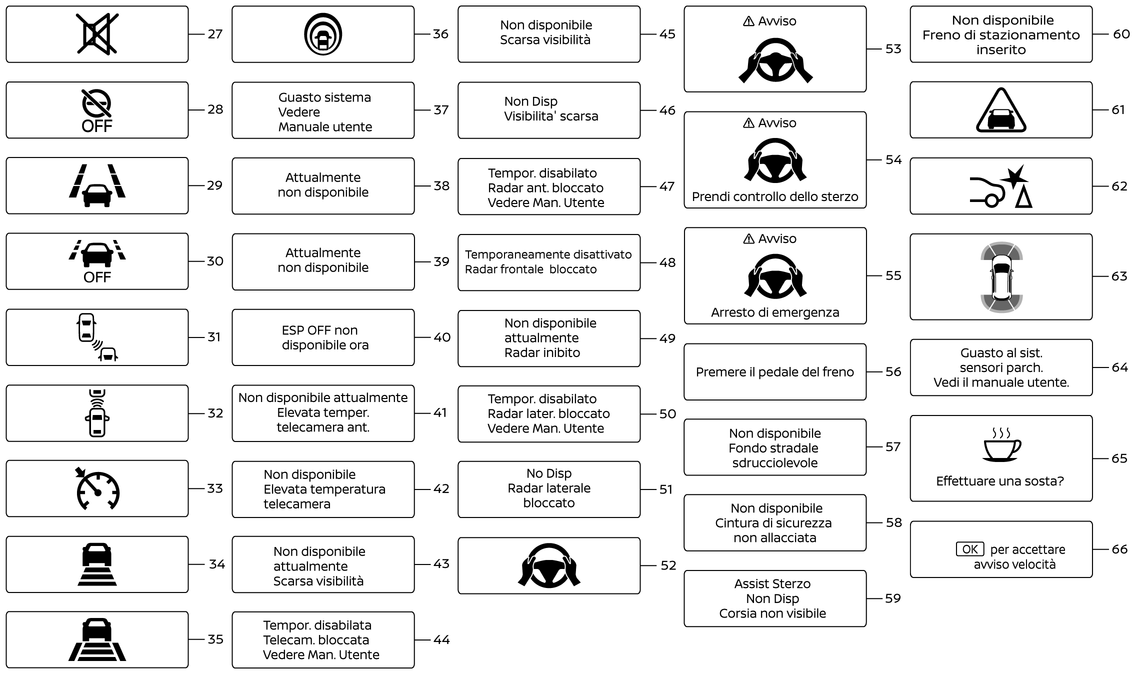

27–28. Traffic Sign Recognition (TSR) system indicators (where fitted)
29. Emergency Lane Assist (ELA) indicator (where fitted)
30. Emergency Lane Assist (ELA) OFF indicator (where fitted)
31. Blind Spot Warning (BSW)/Intelligent Blind Spot Intervention indicator (where fitted)
32. Vehicle ahead detection indicator (where fitted)
33. Cruise indicator (where fitted)
34. Intelligent Cruise Control (ICC) system status indicator (where fitted)
35. Speed control status/set distance/lane marker indicator (where fitted)
36. Intelligent Blind Spot Intervention ON/ProPILOT Assist system status indicator (where fitted)
37. [System fault See Owner’s Manual] warning (where fitted)
38. [Currently Unavailable] warning (where fitted)
39. [Currently Not Available] warning (where fitted)
40. [Currently Unavailable ESP OFF] warning (where fitted)
41. [Currently Unavailable Front Camera High Temperature] warning (where fitted)
42. [Unavailable Camera Temperature High] warning (where fitted)
43. [Currently Unavailable Poor Visibility] warning (where fitted)
44. [Temporarily Disabled Camera Blocked See Owner’s Manual] warning (where fitted)
45. [Unavailable Low Visibility] indicator (where fitted)
46. [Not Available Visibility is impaired] indicator (where fitted)
47. [Temporarily Disabled Front Radar Blocked See Owner’s Manual] warning (where fitted)
48. [Temporarily Disabled Front Radar Blocked] warning (where fitted)
49. [Currently Unavailable Radar Inhibited] warning (where fitted)
50. [Temporarily Disabled Side Radar Blocked See Owner’s Manual] warning (where fitted)
51. [Not Available Side Radar Obstructed] warning (where fitted)
52. Steering Assist indicator (where fitted)
53–55. Hands on detection warning (where fitted)
56. [Press brake pedal] indicator (where fitted)
57. [Unavailable Slippery Road] warning (where fitted)
58. [Not Available, Seat Belt Not Fastened] indicator (where fitted)
59. [Steering Assist Not Available Cannot Detect Lane] indicator (where fitted)
60. [Not Available, Parking Brake On] indicator (where fitted)
61. Intelligent Emergency Braking emergency warning indicator (where fitted)
62. Rear Automatic Braking (RAB) system warning indicator (where fitted)
63. Parking sensor (sonar) system indicator (where fitted)
64. [Parking sensor system fault See Owner’s Manual] warning (where fitted)
65. [Take a break?] indicator (where fitted)
66. OK to Accept Speed Warning indicator (where fitted)
67. [Unavailable Select Driving Aids in Settings] indicator (where fitted)
68. [Only Available with Cruise Control ON indicator] (where fitted)
69. [Press brake pedal to prevent rolling] warning
70. [Press brake to operate switch] indicator
71. [Caution Steep slope] indicator
72. [Steep Slope Apply footbrake] indicator
73. Neutral Hold Mode guidance indicator (where fitted)
74. Neutral Hold Mode activated indicator (where fitted)
75. [Neutral Hold Mode was not activated.] indicator (where fitted)
76. [Low oil level] warning
77. [Sensor Fault See Owner’s Manual] warning
78. Engine Oil [Service due in] – – – km (mile) indicator
79. [Stop the vehicle safely] warning (where fitted)
80–81. Exhaust Filter indicator (where fitted)
82. [Battery Management Fault Service Now] warning
83. [T/M system malfunction Service now] warning
84. [Power reduced] warning (where fitted)
85. Temporary Power Control Activated warning (where fitted)
86. [e-Power System Failure Power reduced] warning
87. [e-Power system off] warning
88. [e-Power system off Stop safely] warning
89. [e-Pedal system failure! Press brake pedal] warning
90. [High Coolant Temp Stop Vehicle See Owner’s Manual] warning
91. [EV Mode Unavailable] warning
